製品詳細
起源の場所: 中国
ブランド名: SINOTERCEL
支払いと送料の条件
最小注文数量: 1台
価格: 交渉可能
パッケージの詳細: ワックス
供給の能力: 1000ユニット/月

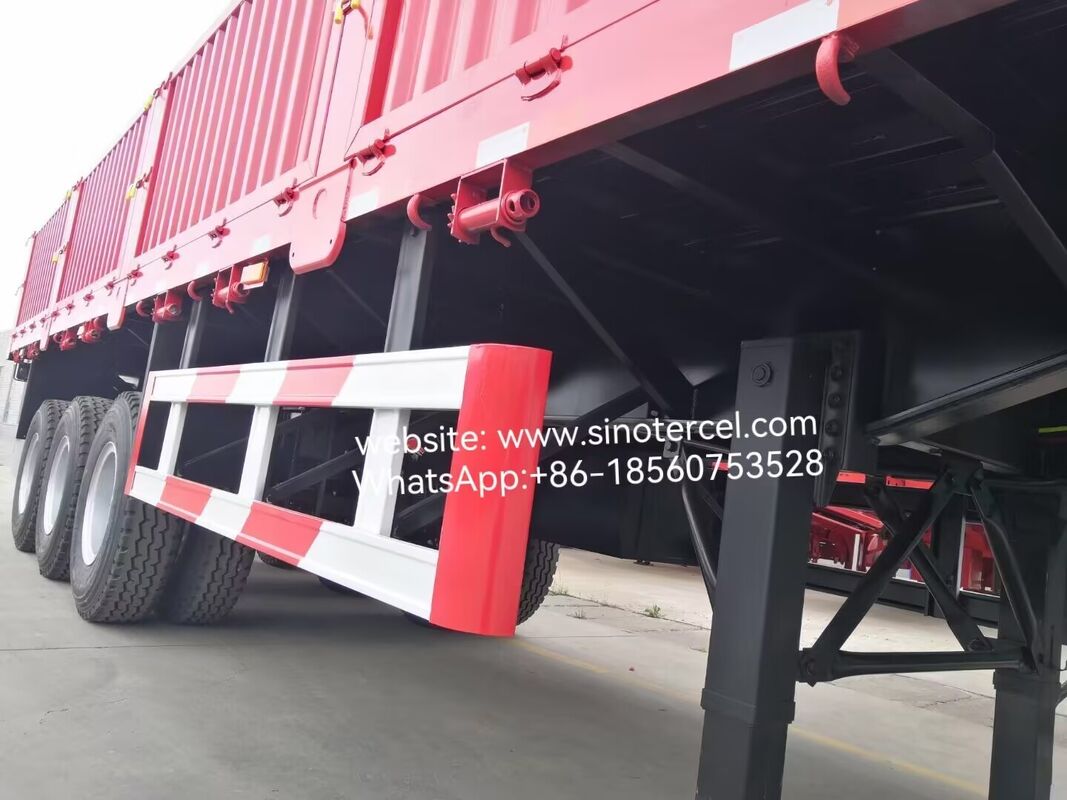

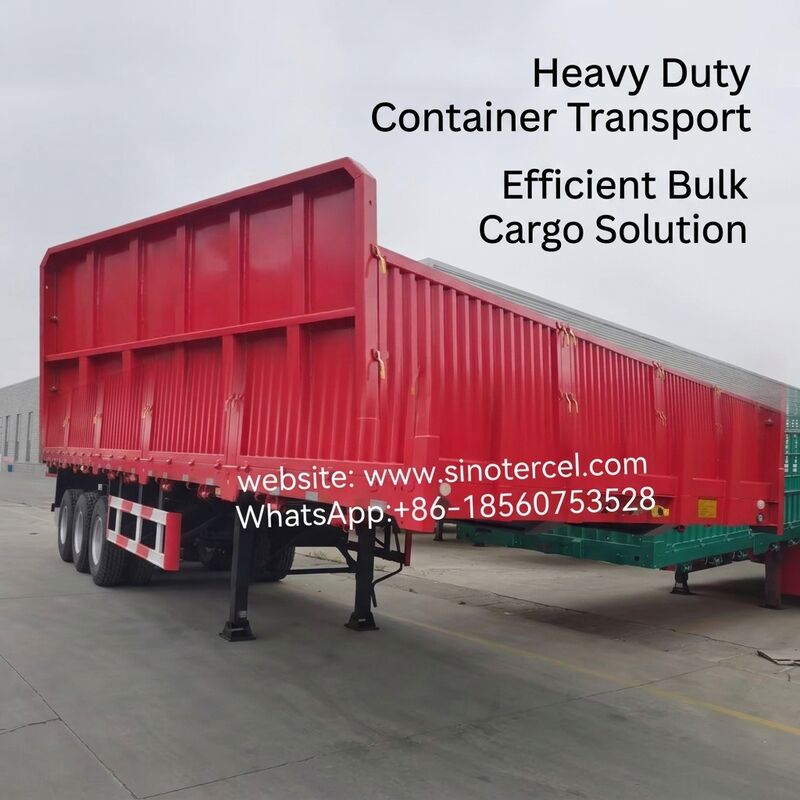

Sidewall Semi Trailer
Product Description:
Pallet transport semitrailer 3 Axles 30-60Tons 13-16m
This is our competitive products, which exported to so many countries, especially Asia and Africa countries. Such as Philippines, Vietnam, Congo, Ethiopia and so on.
Our company semi trailer truck series, is applied to the transportation of all kinds of mechanical equipment, big size articles, road construction equipment ,big size tank body power station equipment and all kinds of steels .widely using ,high efficiency.
You can choose 2 or 3 Axles, which can loading 20-70 Tons.
This kind of semi trailer special used in logistic industry, with high loading capacity,
light self-weight, it's a high cost effective products.
Whole vehicle adopts advanced computer aided design for optimization design ,flexible and various ,to design carrying flat according to the requirements of customers.to meet various of special goods transportation needs.
Parameter:
|
Product name |
Side Wall Semi Trailer 3 Axles 30-60Tons 13-16m |
|
Model |
3 Axles 60Tons |
|
Axle |
FUWA brand, 16ton, 3 Sets |
|
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
|
Dimension of cargo body |
13000*3000*600+1500mm |
|
Material |
Carbon steel or Mn steel |
|
Gross vehicle weight |
70000kgs |
|
King pin |
#90 |
|
Support leg |
JOST Standard 28T |
|
Suspension |
Normal suspensio |
|
Thickness leaf spring |
10/10/10 |
|
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
|
Brake Chamber |
Standard 6 pcs |
|
Spare wheel carrier
|
2 pcs |
|
Tool box |
1 pcs |
|
Electrical System |
Chinese standard 24C lighting system |
|
Side Maker Lamp |
LED lamp |
|
Painting |
Polyurethane Paint |
|
Overall dimension |
16000×2500×3880(mm) |
|
Color |
Blue(According to the requirement of the buyer) |
